Bogie Hearth Furnace Manufacturers in India

Varad Technovision - Heavy-Duty Heat Treatment Furnace Solutions :

Varad Technovision, based in Vasai, Maharashtra, India, is a trusted manufacturer of high-performance Bogie Hearth Furnaces. These furnaces are engineered for heavy-load heat treatment and high-temperature industrial processes. Specifically designed for durability, efficiency, and uniform heating, our furnaces are ideal for processing large and heavy components that require controlled thermal treatment.

Leveraging advanced thermal engineering and customised design capabilities, we offer robust Bogie Hearth Furnace solutions specifically tailored to meet the unique requirements of foundries, forging units, fabrication industries, and heat treatment facilities.

What is a Bogie Hearth Furnace?

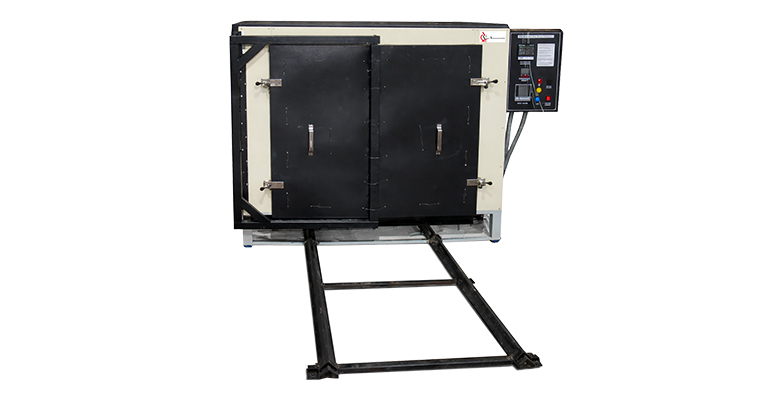

A Bogie Hearth Furnace is a heavy-duty industrial furnace featuring a movable bogie or trolley-like hearth (bottom), which facilitates the easy loading and unloading of large or heavy workpieces. This bogie slides in and out of the furnace chamber, making it ideal for batch heat treatment processes involving exceptionally large components.

These furnaces are widely used in applications where high-temperature uniformity, large chamber capacity, and efficient handling of heavy loads are essential.

Key Features of Our Bogie Hearth Furnaces :

Our Bogie Hearth Furnaces are designed for exceptional performance and a long service life :

High-temperature capability of 1200°C / 1400°C or higher (customizable as per requirements)
Robust, movable bogie hearth for easy material handling.
Uniform temperature distribution throughout the entire chamber.
Advanced PID/PLC-based temperature control system.
High-grade refractories and insulation for energy efficiency.
Electric or fuel-fired options available.
Robust structural design for high load-bearing capacity.
Customizable chamber dimensions and load capacities to suit specific needs.
Optional capability for operation in a controlled atmosphere

Applications of Bogie Hearth Furnaces :

Our Bogie Hearth Furnaces are widely used for :

Annealing of large components
Stress-relieving applications
Forging heat treatments
Normalising and Tempering
Processing of castings and fabricated structures
Heating of heavy engineering parts
Preheating and post-weld heat treatments
Metallurgical and industrial heat processing applications

Benefits of Bogie Hearth Furnaces :

Heavy workpieces can be loaded and unloaded with ease
Uniform heating for consistent and reproducible results
Ideal for large-scale batch processing
Energy-efficient and durable furnace design
Improved productivity and reduced handling effort
Reliable performance for demanding industrial applications

Technical Specification - Bogie Hearth Furnace :

Parameter	Specification
Furnace Type	Bogie Hearth / Trolley Hearth Furnace
Temperature Range	Ambient to 1200°C (Higher on request)
Working Temperature	900°C to 1150°C
Temperature Uniformity	±5°C to ±10°C
Temperature Accuracy	±1°C
Heating Method	Electric Resistance / Gas Fired / Oil Fired
Heating Elements	Kanthal / Silicon Carbide / Custom as required
Chamber Construction	Heavy Duty Steel Fabricated Structure
Insulation Material	Ceramic Fibre / High Alumina Bricks
Furnace Lining	Refractory Brick Lining
Bogie Hearth Type	Motorised / Manual Trolley Movement
Bogie Load Capacity	500 kg to 20 Tons (Customizable)
Hearth Material	Heat-Resistant Alloy / Refractory Top
Chamber Size	Customised as per application
Heating Zones	Single Zone / Multi Zone
Temperature Controller	PID / PLC Based Controller
Control Panel	Digital / Fully Automatic
Power Supply	415V, 3 Phase, 50 Hz (Customizable)
Atmosphere Option	Air / Controlled Atmosphere (Optional)
Door Operation	Manual / Pneumatic / Hydraulic
Safety Features	Over Temperature Protection, Interlocks, Alarm System
Cooling System	Natural Cooling / Forced Cooling (Optional)
Energy Efficiency	High Efficiency Insulated Design
Application	Annealing, Stress Relieving, Normalising, Tempering
Standards	Designed as per Industrial / Customer Specification

Why Choose Varad Technovision?

Experienced Manufacturer of Industrial Furnaces in India

Customised Solutions Tailored to Process Requirements
Precision Engineering Using High-Quality Materials
Rigorous Quality Control and Performance Testing
Competitive Pricing with Reliable Performance
Timely Delivery and Robust Technical Support

Serving Indian and Global Markets :

From our manufacturing facility in Vasai, Maharashtra, Varad Technovision supplies Bogie Hearth Furnaces to markets across India and the globe. Our systems are renowned for their efficiency, durability, and reliable performance in critical thermal processing applications.

Get a Quote for Bogie Hearth Furnaces :

Are you looking for a reliable Bogie Hearth Furnace manufacturer in India? Varad Technovision offers customised furnace solutions tailored to your heat treatment and manufacturing requirements. Our team provides expert technical guidance to help you select the optimal configuration, ensuring efficient, consistent, and long-lasting performance. We also provide affordable and transparent quotations, ensuring you get the best return on your investment. Contact us today to discuss your needs and find the perfect furnace solution.
